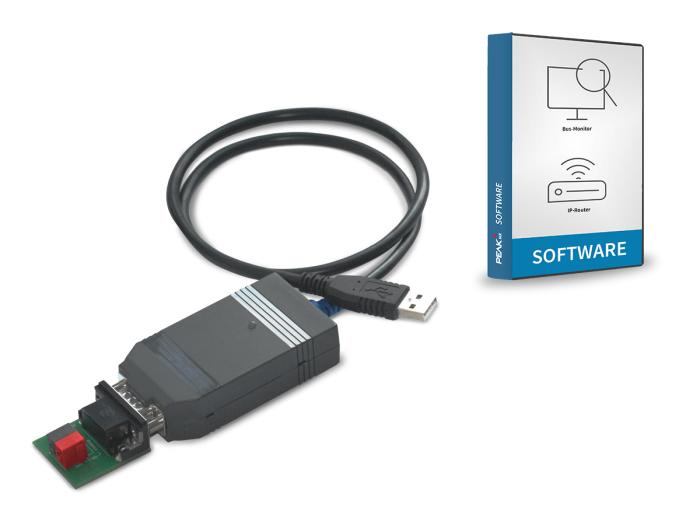

USB-Connector incl. KNX-WAGO 243-211-Adapter (unsealed)

€165.00

In stock

SKU

PNX21-10004

The mobile PEAKnx USB-Connector with its including software package enables fast and simple communication with the knx bus from constantly changing locations. With the help of the USB-Connector, all KNX actuators can be parameterized via the ETS. In addition, the integrated IP router software allows access to the KNX bus with several programs. Via the supplied bus monitor, sources of error on the KNX bus can be identified more quickly.

> Prices for systemintegrators and traders

30 days return

Free support

Fast delivery

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

More than a KNX USB interface thanks to helpful software

The USB connector allows to connect a Windows PC to a KNX network in a few simple steps with full bus communication capability. It can be used starting with ETS 5 and is compatible with Windows 7, 8, 8.1 and 10. The included KNXnet/IP router software enables access to the KNX bus with several programs at the same time. In addition to the normal KNX compatibility, the USB-Connector has a KNX independent Windows driver. This makes the firmware of the KNX USB interface updateable via a PC and suitable for future standards.

USB-Connector connection options

Flexible use in different locations due to adapter concept

The KNX USB interface is the flexible companion for system integrators. It eliminates the need for an expensive KNX USB interface in the control cabinet. System integrators can access the respective KNX network with the help of the USB connector and their laptop. Instead of installing a KNX USB interface in the customer's control cabinet, only an affordable adapter remains there to which the mobile KNX USB interface is connected. With this adapter concept, system integrators gain a significant cost advantage, especially when many different customers and KNX projects are serviced.

Detect errors on the KNX bus in seconds

The included bus monitor significantly speeds up analysis and troubleshooting on the KNX bus. All KNX telegrams are displayed in the user-friendly interface, logged in tabular form and can be filtered according to various properties (such as source address, time and destination address). Filters can be composed of several filter properties and can also be applied or changed during the recording of the bus communication. It is possible to be notified directly by e-mail about certain events on the bus and to configure this as desired.

Software package at a glance

For the development of Smart Home projects or for later maintenance tasks - the supplied software simplifies the day-to-day work of system integrators! The package contains the following components:

1. IP-Router: In conjunction with the USB-Connector, the included software becomes a full-fledged IP-Router. The IP-Router can be used to access the KNX-network over any IP-capable device. You can also create and customise a filter table for incoming and outgoing messages in the software directly.

2. Bus-Monitor: The PEAKnx Bus-Monitor provides you with a clear overview of the KNX-network and offers extensive filter and analysis options.

3. ETS-Configurator: The ETS-Configurator allows you to parameterize and configure the KNX-network via the USB-Connector using ETS.

Scope of delivery
