YOUVI Revox Bridge
The Revox bridge for the YOUVI Basic software package enables integration of a Revox Multiuser 3.0 Audio System. The Multiuser 3.0 Control can be easily accessed and operated via a widget. With the music player integrated into the visualisation, you can individually control the music of the users in each room and have an overview of the music playback throughout the house. With the YOUVI logic module, you can further integrate your sound system into your home automation system.
Please note: The YOUVI Revox bridge can only be used in combination with YOUVI Basic and PEAKnx hardware. You can find out where to locate the YOUVI hardware key under the "Installation" tab.
Expansion for YOUVI Basic: The intelligent software solution for KNX smart home control
With YOUVI Basic you control essential smart home functions such as lighting, shading and heating easily and intuitively. The Revox Bridge as well as other add-ons allow you to extend the smart home functionalities as needed.

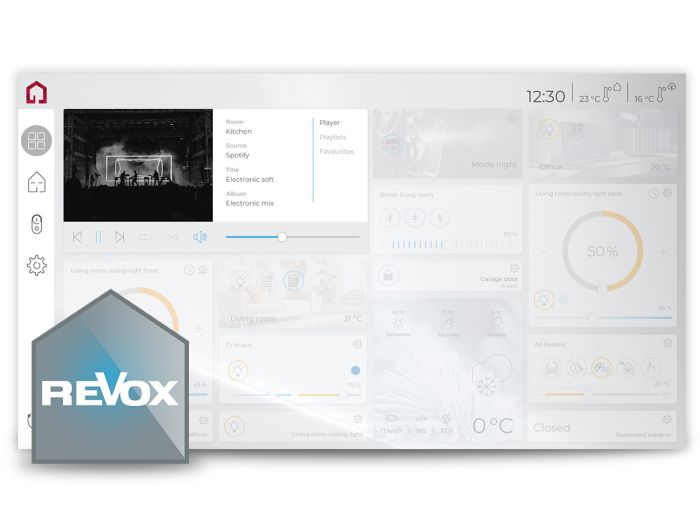

Intuitive music player within the visualisation
The music player integrated into the visualisation can be operated intuitively. Users can start and pause/play songs, skip to the next song, adjust or mute the volume in each room, and switch to repeat or shuffle mode. The "Playlists" and "Favorites" tabs are used to select songs in the player that you have added to your favorites or playlists in the Revox Multiuser 3.0 App.
Multi-Room-Functionality
The sound zones set up in Revox are simply imported into the YOUVI visualisation. This allows each room in the house to have its own player that controls the music. The entire Revox system can be pinned to the dashboard with a group widget. The group widget visualises all zones together.
Integrating your sound system into your home automation
With the logic module, you can integrate sound systems into routines. This makes it possible to address them via the KNX bus and to start playlists or favourites using your KNX switches. Adjusting the volume or simple pausing is also possible when a desired event occurs, for example a doorbell ring.
Imported from Revox:
- Revox playlists
- Revox favorites
- Sound zones
Available widgets including player:
- Group widget with all sound zones
- Widget for one sound zone
Supported features in player:
- Select Revox playlists and favorites
- Adjust volume, mute
- Play/Pause, next song, previous song
- Play mode: repeat, shuffle
Hardware and software requirements
The YOUVI Revox bridge can only be used in combination with YOUVI Basic and PEAKnx hardware (Controlmicro, Control 12, Controlpro, USB-Connector or Performance Server).Installing the Revox bridge
- First, follow these steps in YOUVI:
- If the desired add-on has not yet been installed, do so via the YOUVI Dashboard. For the YOUVI Revox Bridge, click on "Install Revox".
- Then open YOUVI Configuration > More > License and select the appropriate license for the add-on.
- Copy the hardware key.
- Then follow these steps in the PEAKnx Shop:
- Enter the copied code under "Hardware key". A license key will then be generated and stored.
- Once the order process is complete and payment has been made, you can find the licence key in your customer account. Under the "My licence keys" tab, you will find all purchased licence keys.
- Return to YOUVI:
- Open YOUVI Configuration > More > License and nd ensure the correct licence for the add-on is selected!
- Enter the license key in the "License" field and select "Activate".
